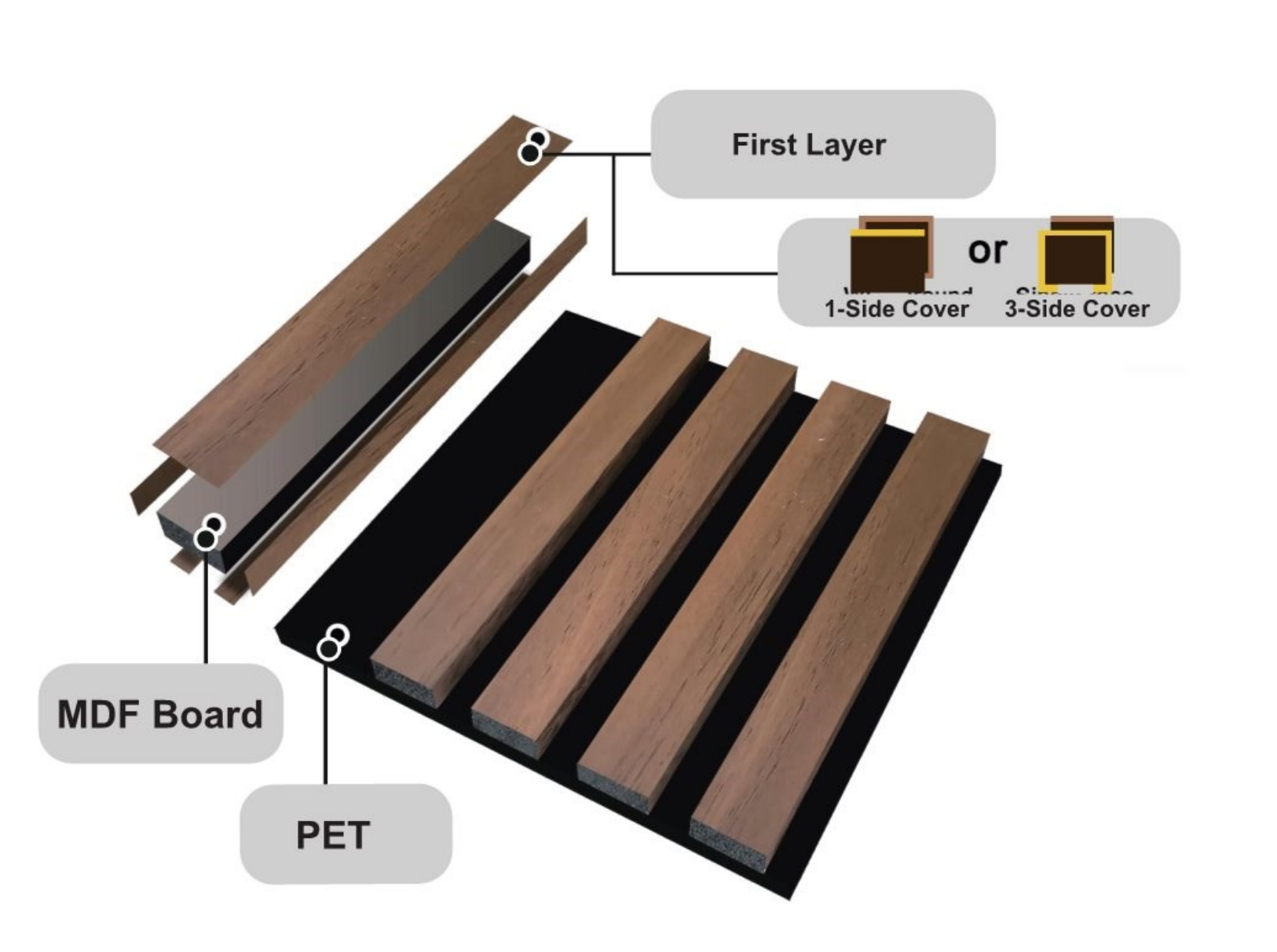

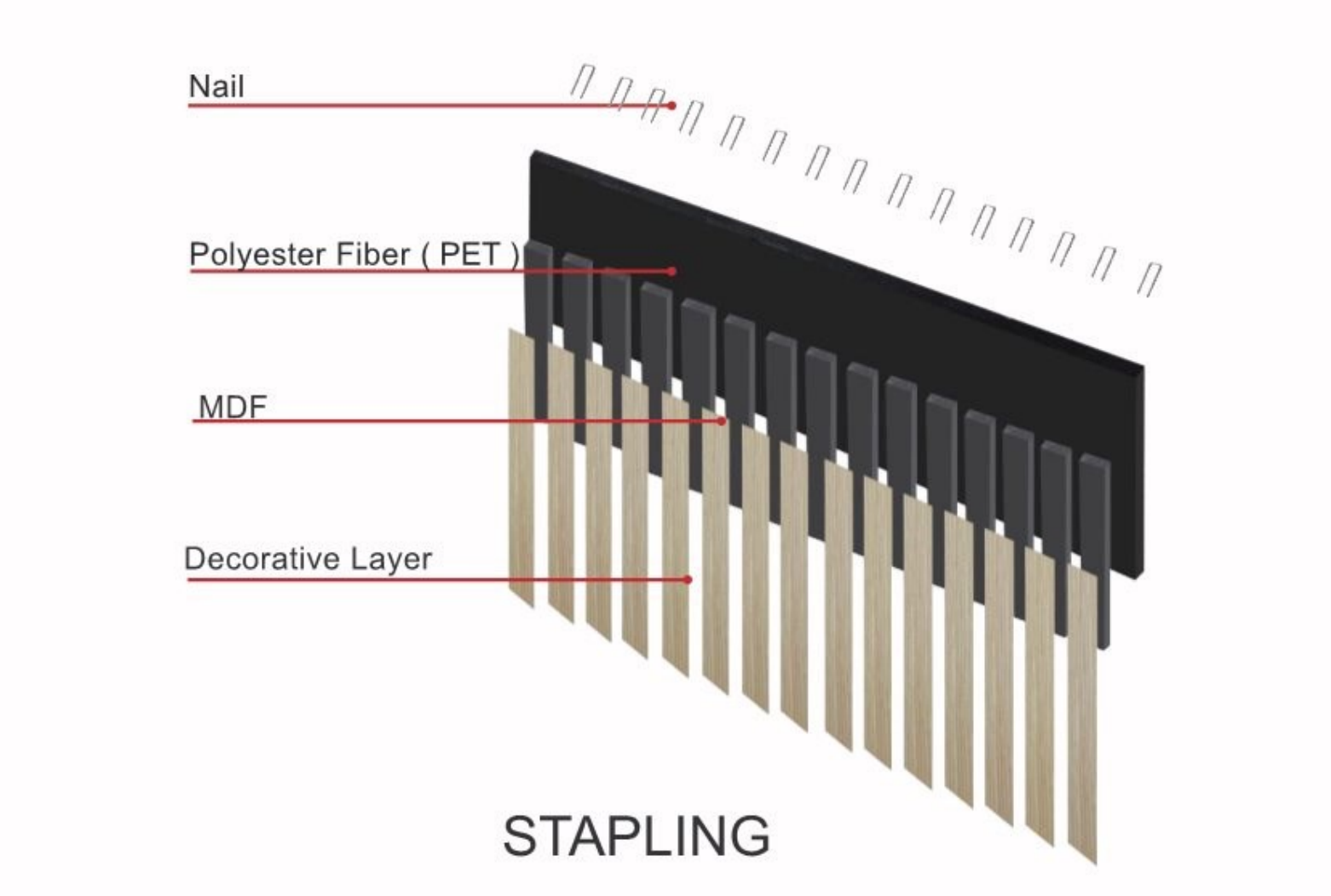

PRODUCT STRUCTURE
Decorative Layer: lt is the top layer of the acoustic wall panel to show the colors and it can be made withdiferent materials: technical wood veneer, natural wood veneer, PVC film, malemine, HPL, leather, etc.
Eco-friendly Slat: lt is the core material of the acoustic wall panel. The main material is MDF, whosecolor is black and vellow. And Solid Hardwood, Bamboo, PS, WPC and other materials also can be used.
High-density Acoustic Polyester Fiber(PET): lt is an ideal product in sound absorption and heat insulation materials. lt has different density: 1350g/m', 1700g/m* and different thickness: 6mm, 7mm, 8mm,9mm, 10mm, etc. And its common color is black but light grey, coffee and other colors also can be usedIt also has the function to fix the wall panels.
Structure Details
| Name |
Meterial |
Color |
Thickness |
| Decorative Layer |
Wood Veneer, PVC Film,Malemine,HPL,Leather, etc. |
Wood, Marble, Pure, Metal.Cloth, Leather, etc. |
Wood Veneer: 0.25mm,0.4mm, 1mm;PVC Film: 0.14mm, 0.16mm, etc. |
| MDF Slat |
Formaldehyde Grade:E1, E0, P2, etc. |
Normal=Yellow, Black |
3mm,10mm，12mm,etc |
| AcousticPolyester Fiber |
PET Density: 1350g/m2,1700g/m2 etc. |
Black, Light Grey, DarkGrey, Coffee, etc. |
9mm,8mm,7mm.etc |
KEY FEATURES
The slat acoustic wall panels consist of a solid core foundation wrapped in the richness of decorativelayer, all attached to PET felt as backing, which makes these optimal for style and noise cancellation.
Elevate vour space with our acoustic wall panels that aive any room a auiet and relaxed feel whilealso create a beautifully contemporary look.
This wall panel is our best seller and therefore a recom-mendation for you!
Significant Sound Absorption:This wall panel is made of PETfelt and so it has good sound absorption
This wall panel is our price-performance for you!
Fast Installation: This wall panel iseasy to install: Installation is quickand easy.
This wall panel is safe and ecofriendly: no harmful chemicalemissions.
Decorative Aesthetics: This wallpanel combines style and function.ality,enhancing both the aesthet-ics and acoustics of any space.
1-SIDE COVER & 3-SIDE COVER
1-Side Cover: The decorative/first layer is usually just wrapped on the top of the slat. lt is with thehighest cost performance and it has strong sense of solid wood from the front.
3-Side Cover: The decorative/first layer is usually wrapped on the 3 side of the slat and it lookssame from the front and from the sides and thus it looks the same as solid wood which is intearated.
First Layer Cover Choice
| Name |
Technical Wood Veneer |
Natural Wood Veneer |
PVC Film |
Malemine |
| 1-Side Cover |
|
|
|
|
| 3-Side Cover |
|
|
|
|

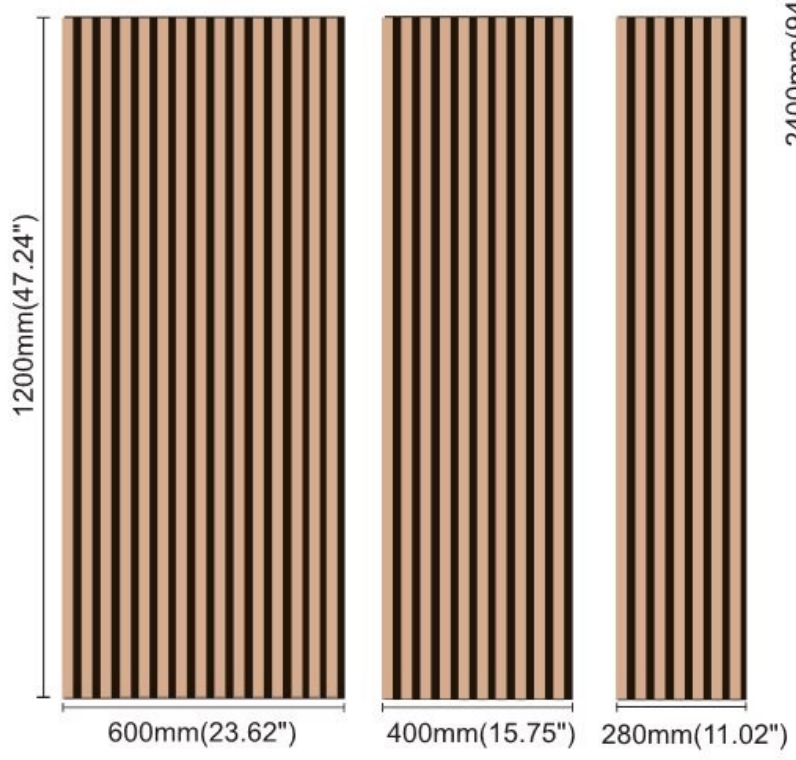

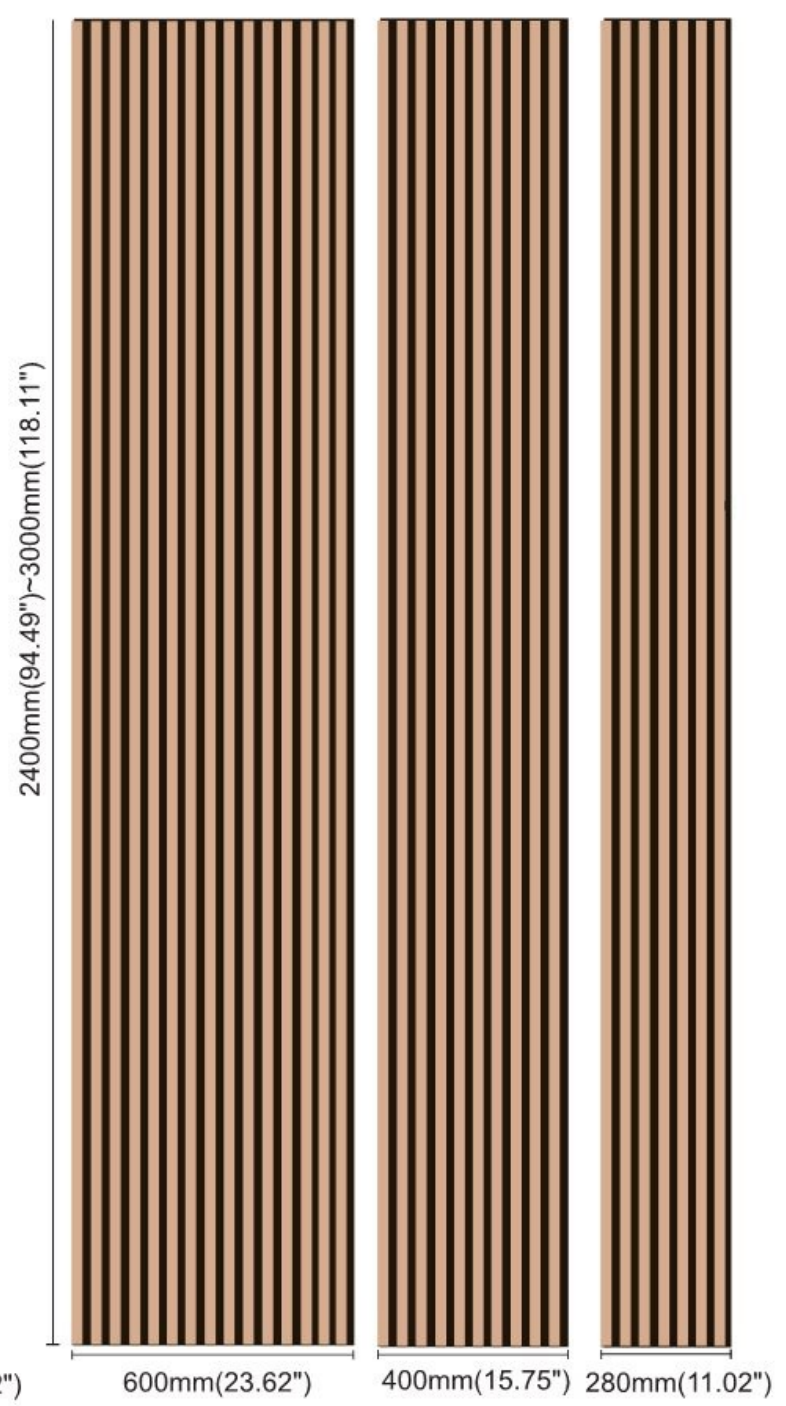

PRODUCT SIZES
Application Place: Both residential and commercial places can be applied.Hotel Lobby, Corridor, Room Decoration, Conference Halls, Recording Rooms, Studios, ResidencesShopping Malls, Schools, Office Space, etc,

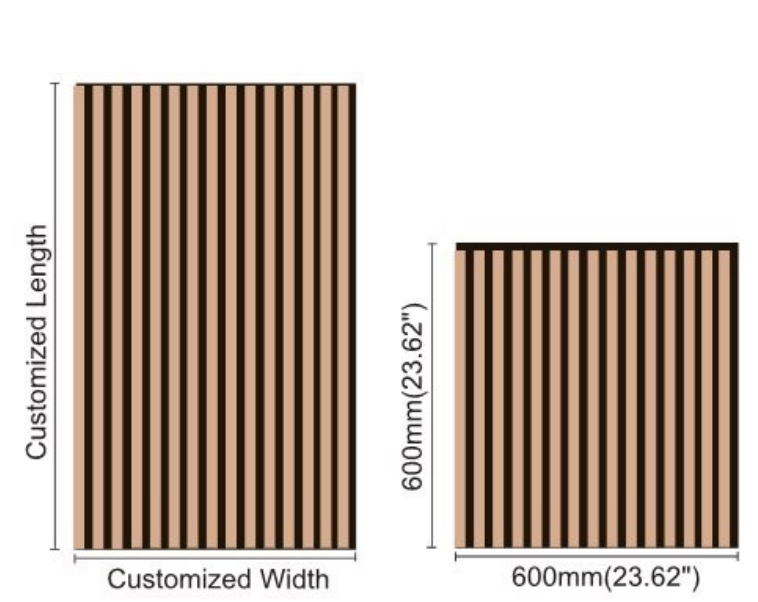

Any other size (different length, width and thickness) requirements can be customized.

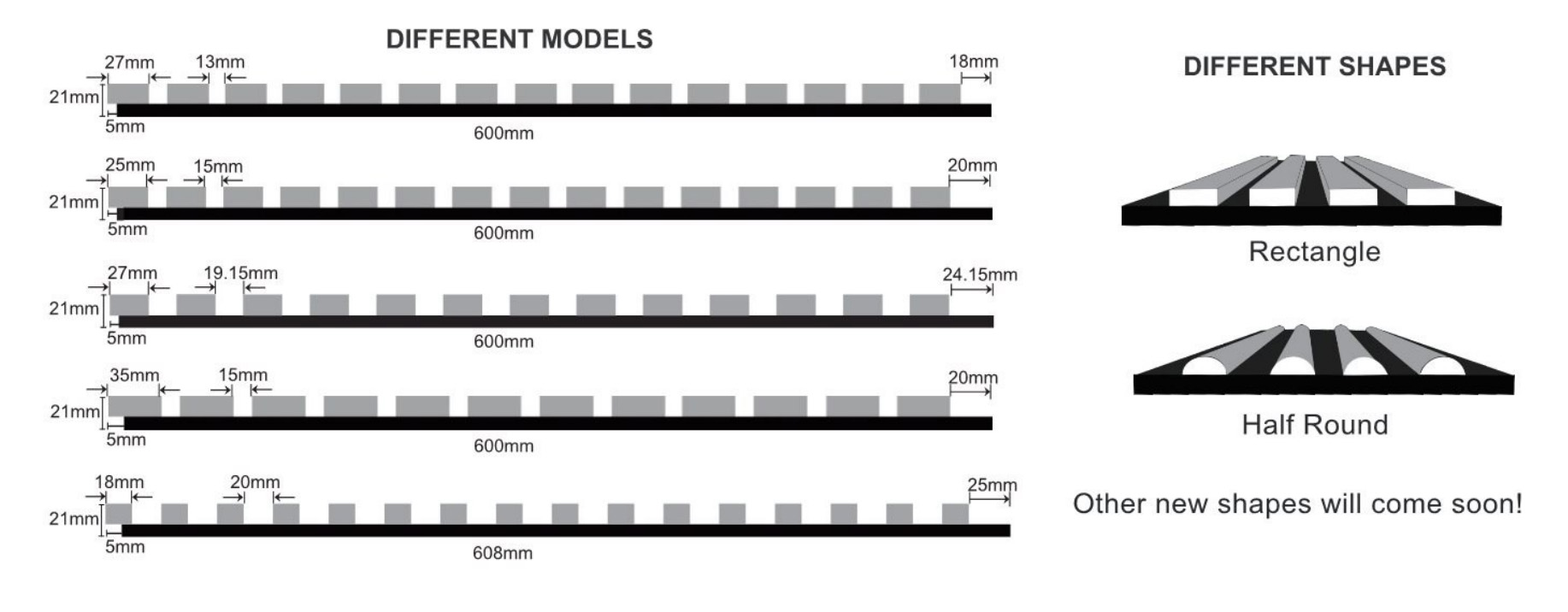

DIFFERENT MODELS & SHAPES
MDF Slat Width: 25mm,27mm,35mm, 18mmetc.
15mm, 19.15mm, 20mm etc.Separation Distance Between 2 Slats: 13mm
Application Choice: lf installation areas are lager, can consider 27/19.15 type; lf installationareas are smaller, can consider 27/13 type; 18/0 type can be double packed and so can loadmore quantity in a container.

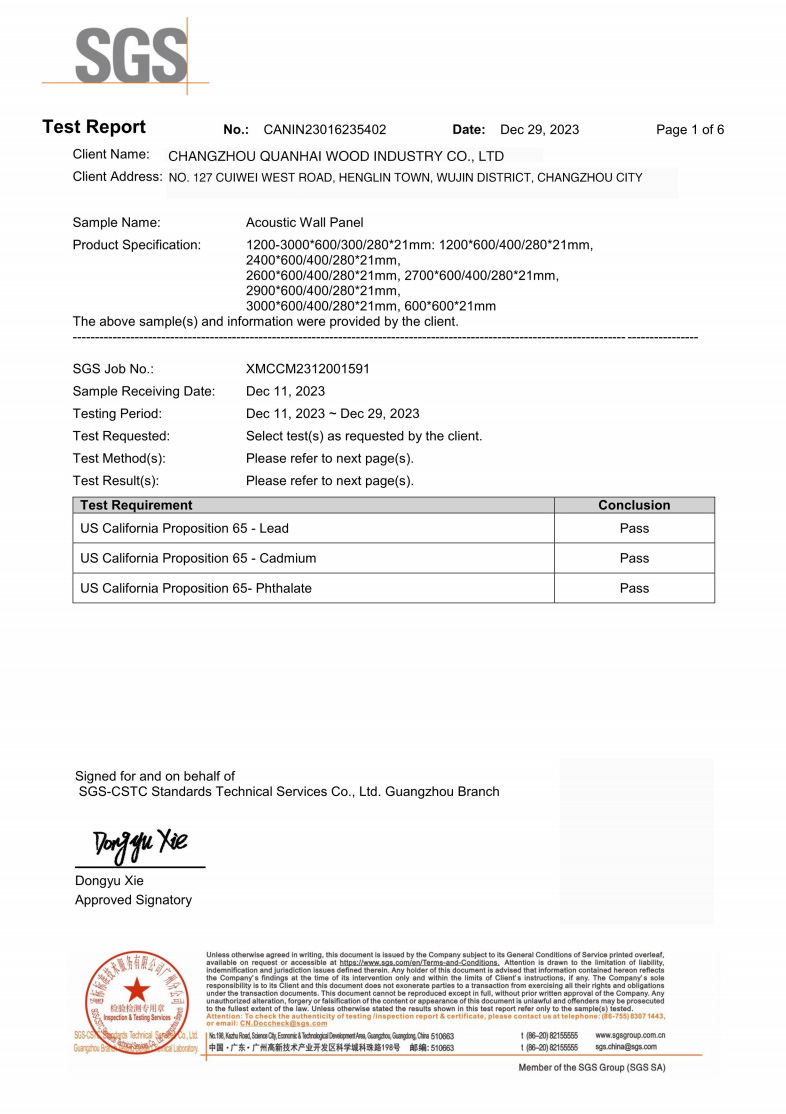

CERTIFICATES

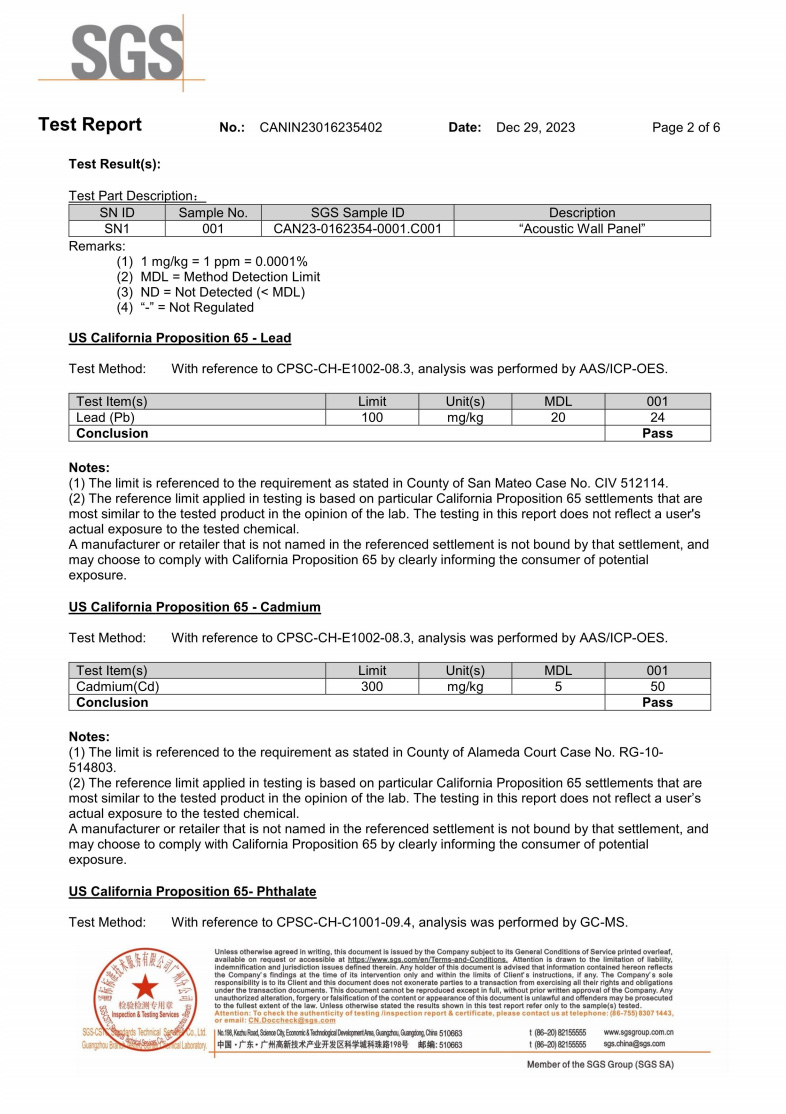

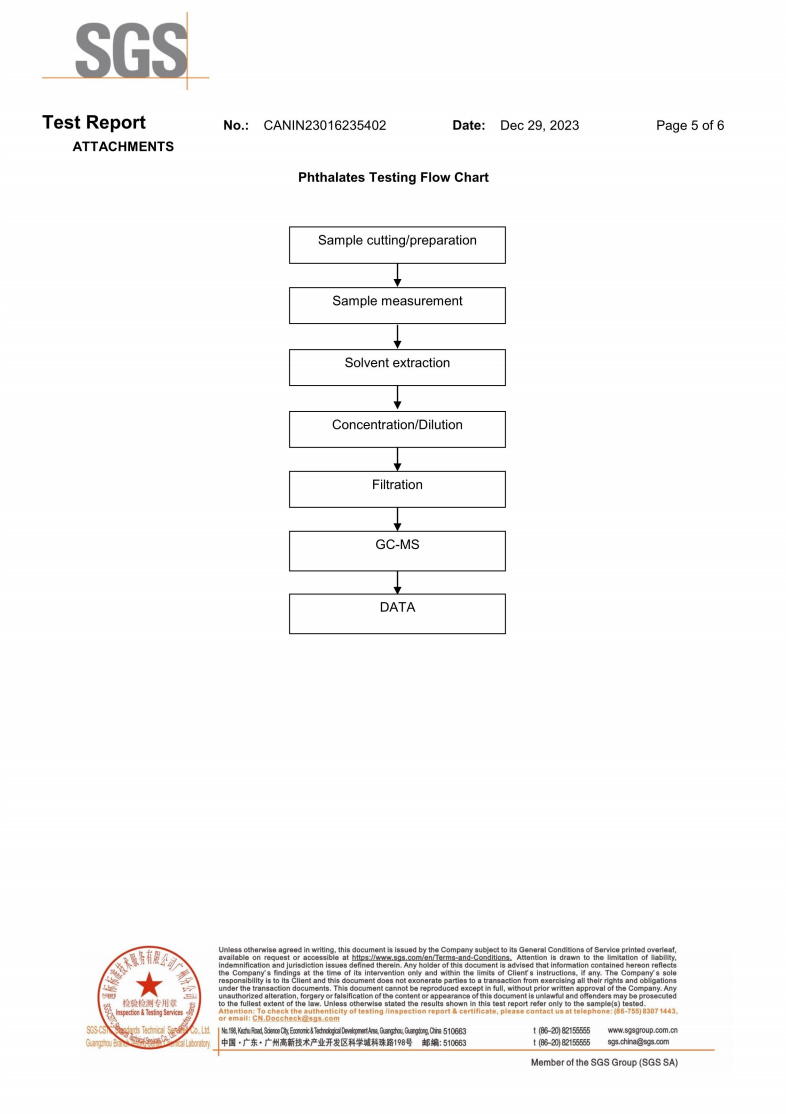

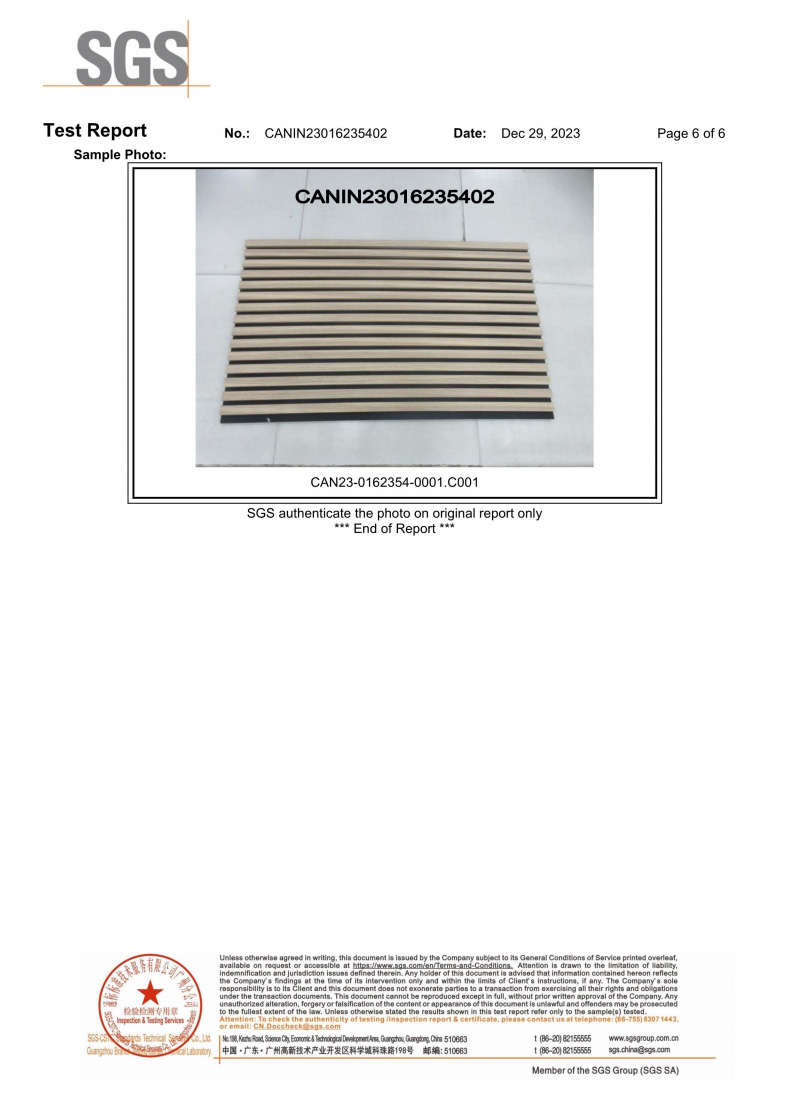

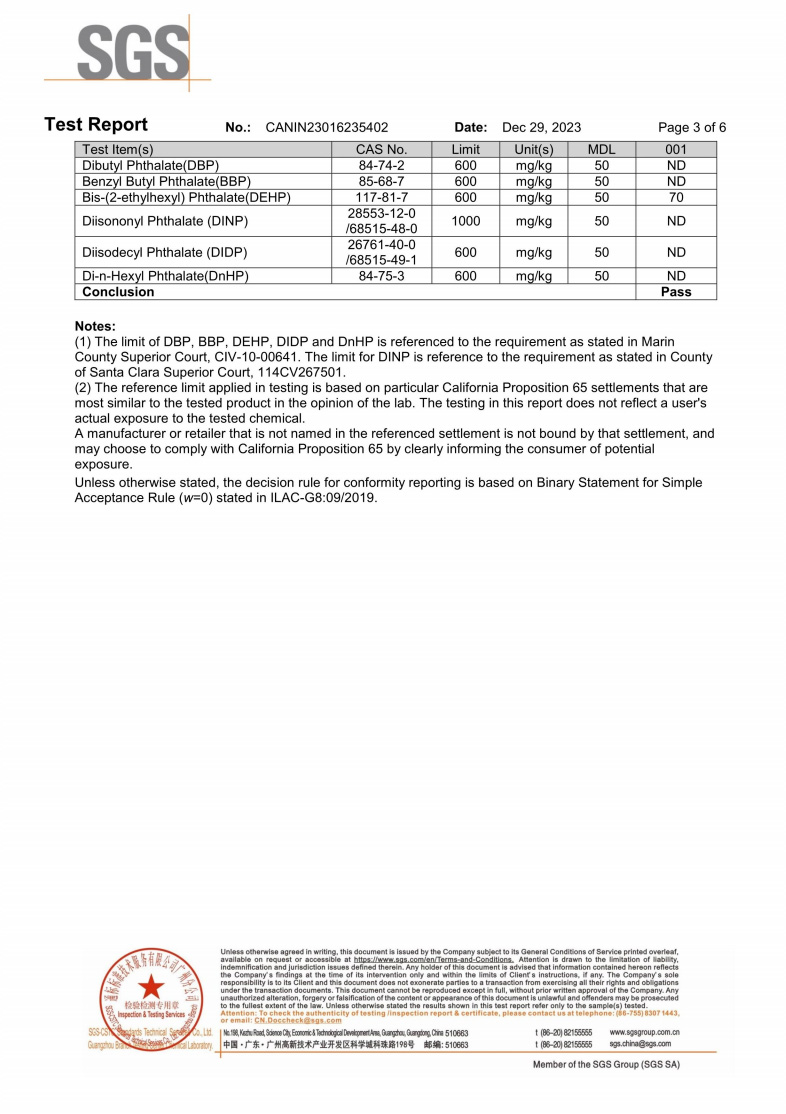

For import customs clearance and quality testing purpose of all clients, ourcompany can provide relevant product certificates after being certified byauthoritativeinstitutions.
Wooden Slat Acoustic Panel Specification
| Surface Material |
Basic Material |
Bottom Material |
MDF Slat Thickness |
MDF Slat Width |
| Technical Wood Veneer, Natural Wood Veneer,PVC Film, Malemine, HPL, Leather, etc. |
MDF, Solid Hardwood, Bamboo, PS, WPC, etc. |
100% Polyester Fiber Acoustic Panel(PET) |
3mm(0.35"),10mm(0.47"),12mm(0.59"),etc. |
26mm(1.06"),30mm(0.98"),35mm(1.38"),etc. |
| Separation Distance |
PET Thickness |
Panel Length |
Panel Width |
Standard Panel Thickness |
| 13mm(0.51"),15mm(0.59"),19.15mm(0.75"),etc. |
6mm(0.24"),7mm(0.27"),8mm(0.31"),9mm(0.35"),10mm(0.39"),etc. |
600mm(23.62"),1200mm(47.24"),2400mm(94.49").2500mm(98.43"),2600mm(102.36"),2700mm(106.30"),2800mm(110.24"),2900mm(114.17"),3000mm(118.11"),etc |
600mm(23.62"),520mm(20.47"),400mm(15.75"),280mm(11.02"),etc. |
21mm(0.83"):12mm(0.47") MDF slat with 9mm(0.35") PET |
| Formaldehyde Test |

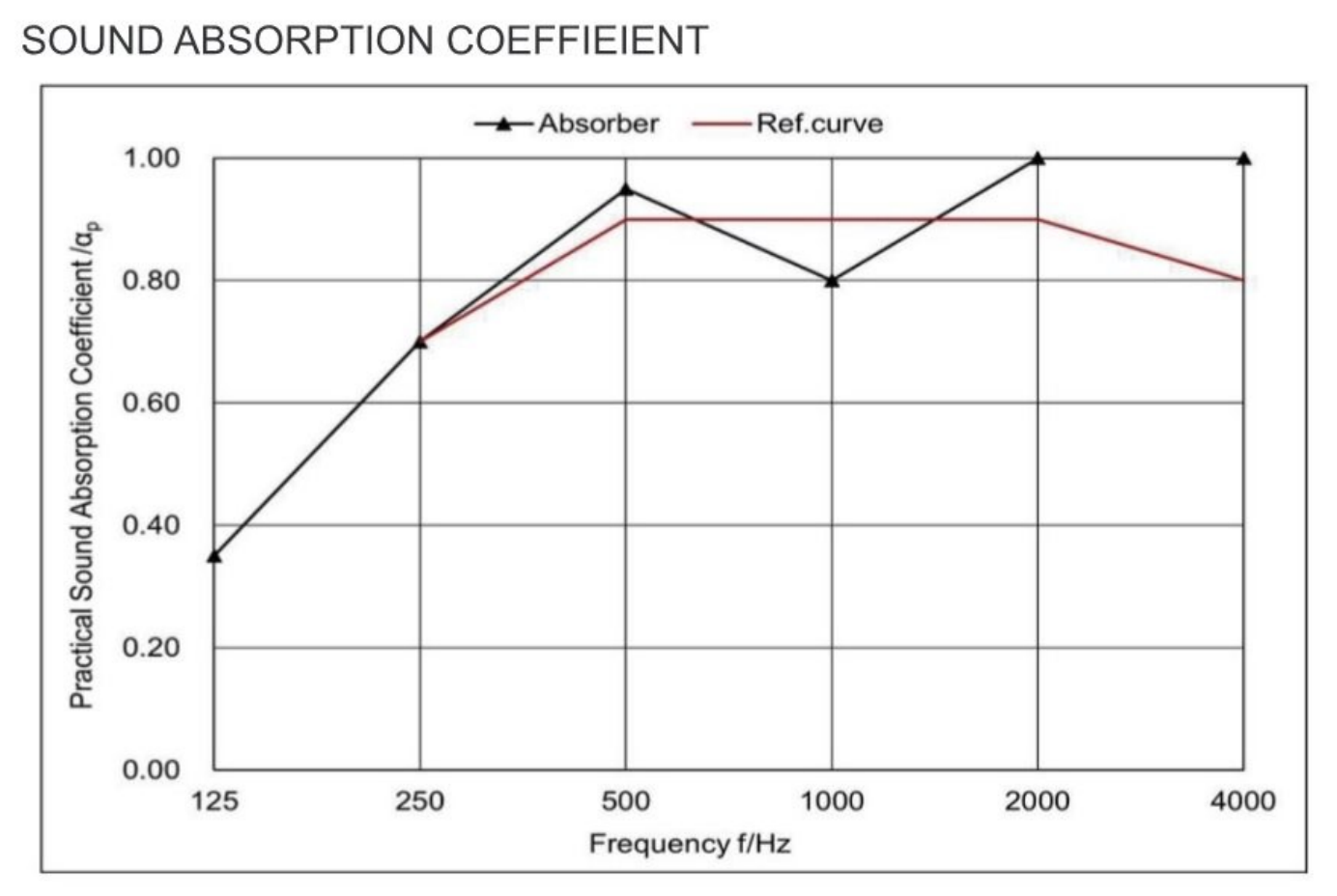

Sound Absorption Coeffieient |
Features |
Usage |
Application |
| EN717-1:CIaSS E0: ASTM D6007-22:P2 |
EN ISO 354: 2003: Class A |
Sound Absorption, Easy Installation, Light Weight, Decorative Aesthetics. etc. |
Accent Wall, Feature Wall, Background Wall, Ceiling, etc. |
Hotel Lobby, Corridor, Room Decoration, Conference Halls,Recording Rooms,Studios,Residences. Shopping Malls,Schools, Office Space, etc. |
| Loading Quantity |
2400X600X21MM(94.49"X23.62"X0.83"):
294CTNS=588PCS=846.72M2-9114.32SQFT/20FT
845CTNS=1690PCS=2433.6M=26195.91SQFT/40HQ:
|
2700X600X21MM 106.3"X23.62"X0.83"):
294CTNS=588PCS=95256M-10253.61SQFT/20FT
692CTNS=1384PCS=2242.08M=24134.34SQFT/40HQ:
|
2900X600X21MM(114.17"X23.62"X0.83""):
294CTNS=588PCS=1023.12M=11013.13SQFT/20FT
692CTNS=1384PCS=2408.16M=25922.07SQFT/40HQ:
|
NATURAL WOOD VENEER
It is a unique and beautiful material sliced from the log (flitch) of a tree. lt is the most authenticand expensive.
Each piece of veneer features an authentic pattern which is reflective of the species of tree.
PVC FILM-WOOD SERIES
Wood colors are characterized by a strong sense of wood, and can even replace hiah-auality loasand they can be used in any places.
Thousands of wood grain colors are available: Oak, Walnut, Maple, Beech, Ash, Birch, Pine, Rose-wood, Sandalwood, Teak, etc.
